Feature
- Powerful Performance: 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU with 8GB RAM
- Dual 4K Displays: 2 micro HDMI ports supporting resolutions up to 4Kp60
- Comprehensive Connectivity: Dual-band Wi-Fi, Bluetooth 5.0, Gigabit Ethernet, USB 3.0
- High-Quality Keyboard: Integrated 78/79/83-key compact keyboard (regional variants)
- Effective Cooling: Built-in aluminum heatsink for optimum thermal management
- Compact Form Factor: All-in-one computer and keyboard design for space efficiency
Specification
| Keyboard | US |
| Processor | 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache |
| Memory | 8GB LPDDR4X-4267 SDRAM |
| Storage | 32GB Raspberry Pi A2-Class Micro-SD card |
| Wi-Fi | Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac |
| Bluetooth | Bluetooth 5.0, BLE |
| Ethernet | 1x Gigabit Ethernet |
| USB | 2x USB 3.0
1x USB 2.0 |
| GPIO | Horizontal 40-pin GPIO header |
| Video & sound | 2 × micro HDMI ports (supports up to 4Kp60) |
| Multimedia | H.265 (4Kp60 decode); OpenGL ES 3.0 graphics |
| SD card support | microSD card slot for operating system and data storage |
| Keyboard | 78-, 79- or 83-key compact keyboard (depending on regional variant) |
| Power | 5V DC via USB connector |
| Operating temperature | 0°C to +50°C |
| Dimensions | 286 mm × 122 mm × 23 mm (maximum) |
| Production lifetime | Raspberry Pi 500 will remain in production until at least January 2034 |
| Compliance | For a full list of local and regional product approvals, please visit pip.raspberrypi.com |

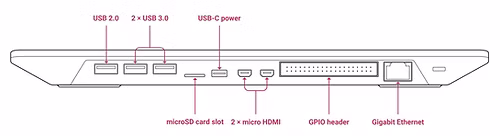

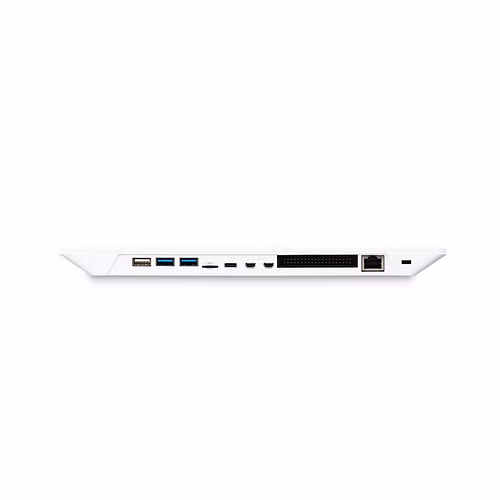

Hardware Overview
Hardware Overview

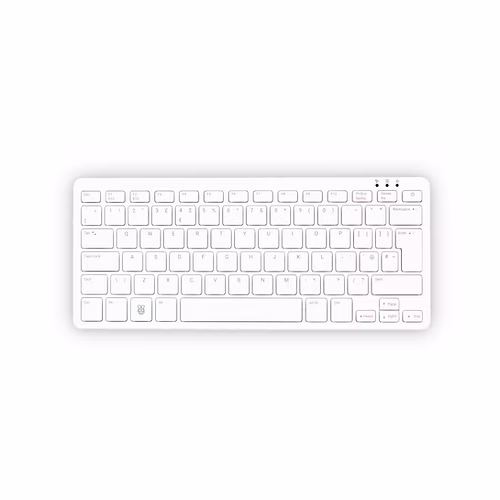

Keyboard print layouts
Documents
Raspberry Pi 500 Announcement Blog Post
Raspberry Pi 500 Product Brief
Raspberry Pi 500 Documentation
ECCN/HTS
| HSCODE | 8471504090 |
| USHSCODE | 8543708800 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | GB |
Part List
| Raspberry Pi 500 – US Version | X1 |
| 32GB Raspberry Pi A2-Class MicroSD Card Pre-programmed with Raspberry Pi OS | X1 |
